Dry Aging Production Units

COMMERCIAL DRY AGING
ROOM SOLUTION

Highly efficient and easily retro-fitted to existing coolroom



Enquire Now

INTRODUCING THE LATEST FROM DRY AGER®, PRODUCTION UNITS

Dry Aging has never been so easy. Super efficient plug & play cooling units, which can be retrofitted to any existing walk-in cool room.
Make an opening in the ceiling, put this solution on top and plug it in – done!

Dry Ager® – Dry Aging Production units are supplied as plug-in solutions and have all the technical features of a fully equipped dry aging production facility.

The integrated UVC sterilisation ensures maximum safety and guarantees perfect dry aging results.
Dry Aged beef, pork, salami, ham and cheese can be produced with unprecedented flexibility.
No fixed water connection is required.

Besides the exact temperature control from 0 to +25 °C, the humidity is also controlled
accurately through the integrated HumiControl™ system, which can be set
electronically between 60 and 90 %. This guarantees, together with the DX AirReg™
system, a perfect micro-climate, an ideal air-flow and continuous sterilisation.
Expect the best product, 100% hand-made in Germany.





ENQUIRE NOW

STERILISED EVERY MINUTE

PRECISE REGULATION OF HUMIDITY

FULL ELECTRONIC TEMPERATURE CONTROL

VERY LOW WEIGHT LOSS

MAXIMUM FLEXIBILITY

PLUG & PLAY

Walk in chamber

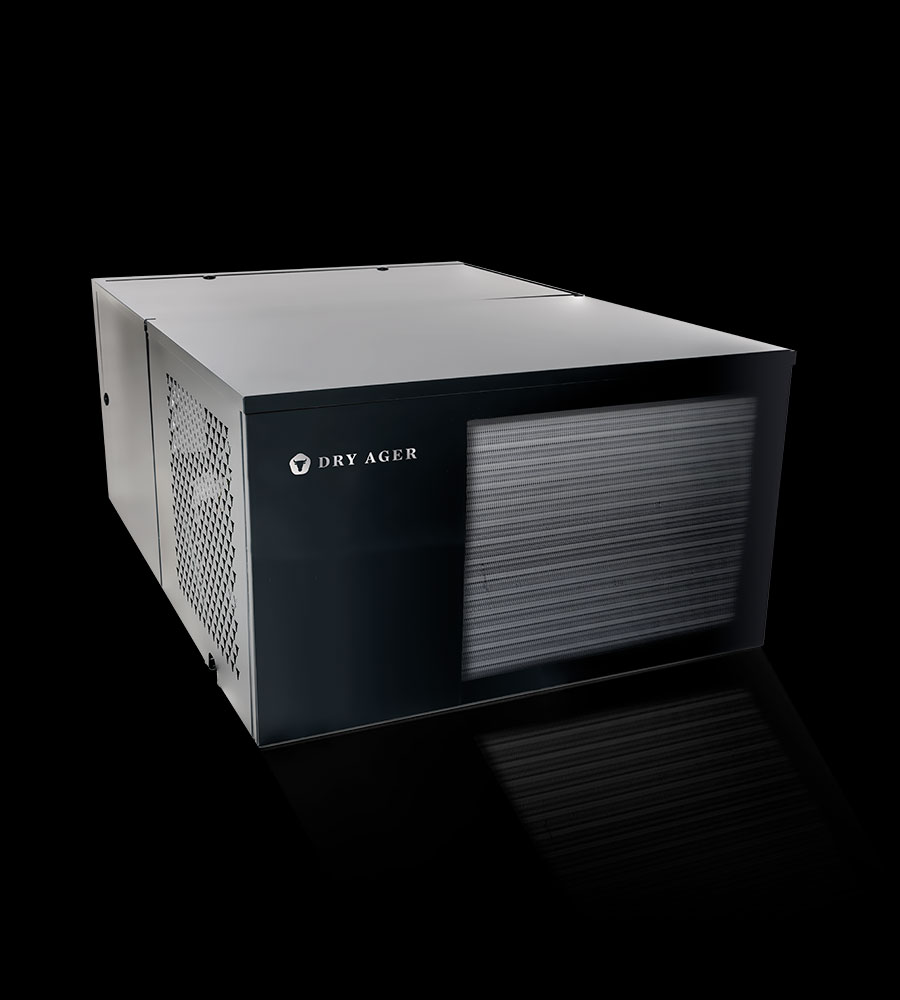

DRY AGER® PRODUCTION UNITS

So what do you get?

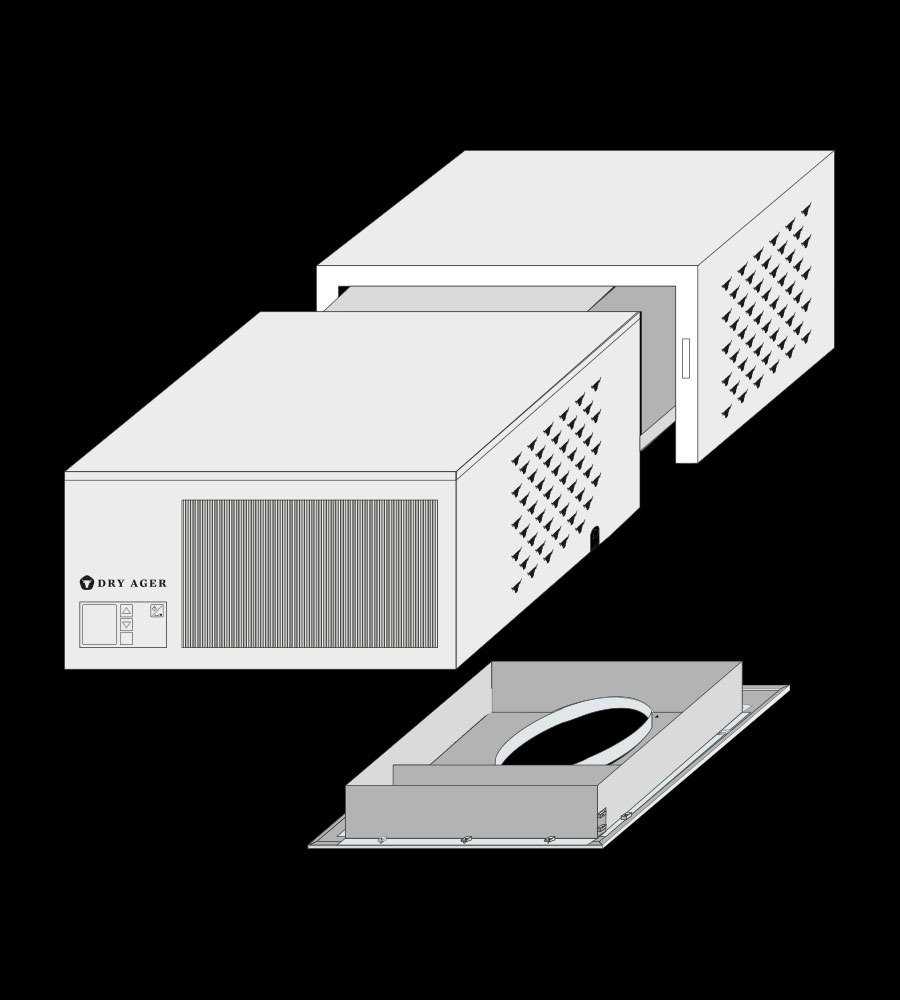

The Production Unit is a retro-fit solution, meaning it is installed into an existing cool room.

So if you've got the space, or are looking at expanding, put the room to work and have your very own dry aged meat facility.



ENQUIRE NOW

TECHNICAL SPECIFICATIONS

EXTERNAL BODY grey powder coated
VOLTAGE 220-240 V – 16-amp domestic supply
INTERNAL TEMPERATURE RANGE electronic controller in 0.1 °C increments from: 0 °C to +25 °C
AMBIENT TEMPERATURE RANGE
 Min 10°C - Max. 32°C
HUMICONTROL electronic humidity controller from 60% to 90%
(no external water supply necessary)

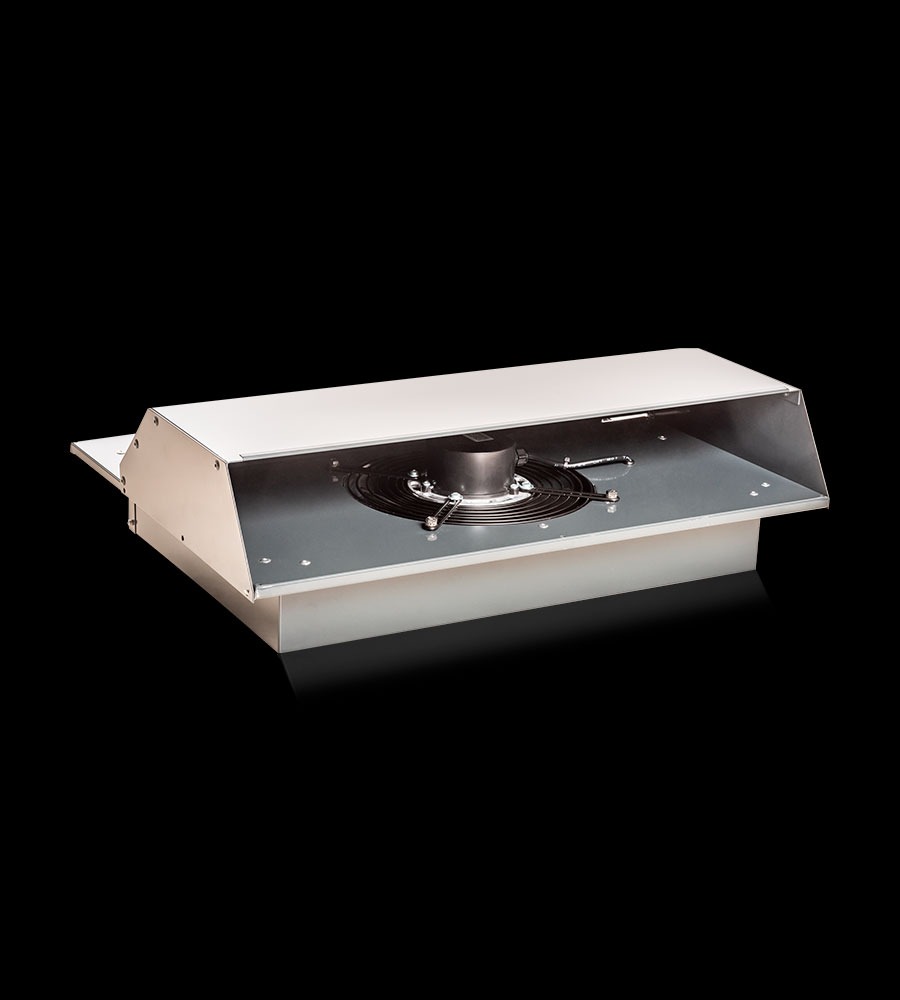

DX AIRREG optimal airflow & UVC sterilisation system
DEFROST Automatic
CONDENSATION Automatic evaporation
ALERTS Optic & acoustic

DX 6000 PREMIUM – for up to 10 m³ capacity

COOLING POWER APPROX. 1000W
NOMINAL CONSUMPTION 680W / 16A
UNIT DIMENSIONS APPROX. 400 x 700 x 900 mm (HxDxL)
DUCT CUTOUT DIMENSIONS
 405 x 570mm (LxW)

DX 8000 PREMIUM – for up to 24 m³ capacity

COOLING POWER APPROX. 2300W
NOMINAL CONSUMPTION 1800 W / 16 A
UNIT DIMENSIONS APPROX. 500 x 860 x 1000 mm (HxDxL)
DUCT CUTOUT DIMENSIONS
 450 x 740 mm (LxW)
